Deposition of TiO₂ is a standard, and well explored ALD process. Titanium(IV) isopropoxide (TTIP), Tetrakis(dimethylamido)titanium (TDMAT), and TiCl4 are the most popular. The last one is what is used at DTU Nanolab, because of the low cost and abundance. It can tolerate high temperatures (at least up to 500-550 °C) and can be employed for the deposition of TiO₂ as well as TiN (in ALD-2). The only disadvantage is the minor chlorine contamination, especially pronounced at the lower temperature range (below 200 °C). The TiO₂ film is very popular in many applications due to the ease of deposition, excellent uniformity, strict thickness control, and reliability. At DTU Nanolab you can either use ALD-1 or ALD-2 for the deposition of TiO₂ with thermal (ALD-1 or ALD-2) or plasma (ALD-2) methods.

Unlike Al₂O₃, the TiO₂ deposition process is quite complex. While increasing the temperature, the film will change the phase from amorphous to a polycrystalline (anatase) state. Typically users select an amorph layer if they need very smooth continuous films with high refractive index (many different photonic applications within waveguides and cavities). The refractive index for TiO₂ is higher for polycrystalline anatase, but so also roughness. Anatase films are dominating in photovoltaics and solar cells relevant research. Another crystallographic phase known in TiO₂ is rutile. This has an even higher refractive index but is unreachable with ALD as temperatures above 600 °C are usually required. It is possible to achieve a rutile form with plasma-enhanced ALD (PEAD) at a lower temperature but requires a biased stage which we do not have. If the rutile form is needed the users should consider reactive sputtering.

TiO₂ ALD deposition using TiCl₄ and H₂O

TiO₂ can be deposited in the range between 100 °C to 350 °C. The recommendation is to use 150 °C for amorphous TiO2 and 300-350 °C for anatase.

TiO₂ recipes

Recipe: TiO2

Maximum deposition thickness: 100 nm

Temperature: 100 ^oC - 350 ^oC

	TiCl₄	H₂O
Nitrogen flow	150 sccm	200 sccm
Pulse time	0.1 s	0.1 s
Purge time	4.0 s	5.0 s

This is a standard recipe of TiO₂. It is suitable for coating the flat samples and structures with an aspect ratio of around up to 1:10.

Recipe: TiO2T

Maximum deposition thickness: 100 nm

Temperature: 100 ^oC - 350 ^oC

	TiCl₄	TiCl₄	H₂O	H₂O
Nitrogen flow	150 sccm	150 sccm	200 sccm	200 sccm
Pulse time	0.1 s	0.1 s	0.1 s	0.1 s
Purge time	0.5 s	20.0 s	0.5 s	20.0 s

This is a more complicated recipe that allows coating the sample with very high aspect ratio profiles. The recipe is good for deposition on very high aspect ratio structures (with aspect ratio more than 1:20) such as deep trenches, pillars, pores etc. TiO2T recipe can also be used for deposition on polymers at low temperatures (80-120 ^oC).

Deposition characteristics

The deposition rate for TiO₂ depends on the temperature, see the ALD-window graph below. The uniformity, thickness, refractive index has been obtained using Ellipsometer VASE. Besides the temperature dependencies, the process exhibits a certain growth delay especially pronounced in the transition zone where the growth characteristics change significantly. This occurs in the temperature range where the phase shift from amorphous to polycrystalline (anatase) happens. Very interesting behavior observes between 200 °C and 250 °C. Here is a very abrupt change in the deposition rate present. To understand better this phenomenon, films with more dense temperature steps need to be deposited and analyzed.

Deposition rate

Deposition rate of TiO₂ at 100 °C. Substrate: Silicon 4" wafer with native oxide.
$Thickness(nm)=0.0548\cdot N+2.9221$ . Here is no growth delay, but possibly a condensation phenomenon. This also means that this temperature is outside of the ALD window.
Deposition rate of TiO₂ at 150 °C. Substrate: Silicon 4" wafer with native oxide.
$Thickness(nm)=0.0462\cdot N-0.8113$ . Growth delay is 18 cycles.
Deposition rate of TiO₂ at 200 °C. Substrate: Silicon 4" wafer with native oxide.
$Thickness(nm)=0.0392\cdot N-1.1898$ . Growth delay is 30 cycles.
Deposition rate of TiO₂ at 250 °C. Substrate: Silicon 4" wafer with native oxide.
$Thickness(nm)=0.0600\cdot N-11.6763$ . Growth delay is 194 cycles.
Deposition rate of TiO₂ at 300 °C. Substrate: Silicon 4" wafer with native oxide.
$Thickness(nm)=0.0519\cdot N-6.0260$ . Growth delay is 116 cycles.
Deposition rate of TiO₂ at 350 °C. Substrate: Silicon 4" wafer with native oxide.
$Thickness(nm)=0.0455\cdot N-3.8518$ . Growth delay is 84 cycles.
ALD window of TiO₂. The deposition rate changes the behavior quite dramatically once the phase transition from amorphous to anatase starts. If the user wishes to deposit an amorph layer the 150C is the best choice. If anatase is desired the temperature should be 300C or 350C.
ALD window of TiO2₂O₃. The nucleation and growth delay depend on the nature of the substrate, its crystallinity (amorph or crystal), and its chemical nature.

Uniformity across 100 mm wafer

Recipe "TiO2" Samples: 100mm ssp-Si

Results have been obtained for <100> 100 mm Si wafers with native oxide, based on ellipsometry study. Note, that for TiO₂ a growth delay will occur, which can be quite pronounced depending on the selected temperature and substrate.

Temperature (°C) / Number of cycles	Deposition rate (nm/s)	Average thickness (nm)	Standard deviation	Uniformity (%)
100°C / 1000cycles	0.0548	57.64	0.53	1.62
150°C / 1000cycles	0.0462	45.02	0.46	1.87
200°C / 1000cycles	0.0392	37.45	0.39	1.68
250°C / 1000cycles	0.0600	48.36	0.28	0.94
300°C / 1000cycles	0.0519	45.43	0.60	2.22
350°C / 1000cycles	0.0455	41.57	0.28	0.95

Uniformity across 100mm wafer. Deposition at 100°C
Uniformity across 100mm wafer. Deposition at 150°C
Uniformity across 100mm wafer. Deposition at 200°C
Uniformity across 100mm wafer. Deposition at 250°C
Uniformity across 100mm wafer. Deposition at 300°C
Uniformity across 100mm wafer. Deposition at 350°C

Optical functions

TiO₂ has been deposited on natively oxidized Si wafers (1000 cycles of TiCl₄ and H₂O) in the temperature range between 100°C and 350°C. The ellipsometry analysis is based on the Tauc-Lorentz model.

$Refractive index of TiO2 deposited at different temperatures using 1000 cycles TiCl4 and H2O.$

Refractive index of TiO₂ deposited at different temperatures using 1000 cycles TiCl₄ and H₂O.
Absorption coefficient of TiO₂ deposited at different temperatures using 1000 cycles TiCl₄ and H₂O.
Transmission intensity of 100 nm amorphous TiO₂ vs. 100 nm anatase TiO₂ (deposited on fused silica).

Optical functions of TiO₂ deposited on different substrates

The physical properties of TiO₂ are sensitive to the chemical and crystal nature of the substrate material it is deposited on. After all, ALD is a chemical reaction with the surface. Here the optical properties are shown for TiO₂ deposited on Si with and without native oxide, as well as on Si with the 35 nm Al₂O₃. The nucleation and deposition rate are quite different on all three especially if the selected temperature is chosen to be in the transition zone of 150-250°C, where the phase change from amorphous to anatase polycrystals appear.

$Refractive index. Deposition at 100°C$

Refractive index. Deposition at 100°C
$Refractive index. Deposition at 150°C$

Refractive index. Deposition at 150°C
$Refractive index. Deposition at 200°C$

Refractive index. Deposition at 200°C
$Refractive index. Deposition at 250°C$

Refractive index. Deposition at 250°C
$Refractive index. Deposition at 300°C$

Refractive index. Deposition at 300°C
$Refractive index. Deposition at 350°C$

Refractive index. Deposition at 350°C

Absorption coefficient. Deposition at 100°C
Absorption coefficient. Deposition at 150°C
Absorption coefficient. Deposition at 200°C
Absorption coefficient. Deposition at 250°C
Absorption coefficient. Deposition at 300°C
Absorption coefficient. Deposition at 350°C

Deposition on flat samples (SEM inspection)

Surface morphology was inspected using SEM images. TiO₂ layers were deposited on different substrates: Si without native oxide (HF-treated), Si with native oxide, and Si with 35 nm Al₂O₃ (300°C, 350 cycles). From the images, it is clearly visible that TiO₂ growth and nucleation depend on the nature of the substrate surface used in the process. The difference is mainly pronounced in the transition zone region (200°C +/- 50°C), where the phase change appears.

TiO₂ was deposited at 100°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with native oxide.
TiO₂ was deposited at 100°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Pure Si (HF treated).
TiO₂ was deposited at 100°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with 35 nm Al₂O₃.
TiO₂ was deposited at 150°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with native oxide.
TiO₂ was deposited at 150°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Pure Si (HF treated).
TiO₂ was deposited at 150°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with 35 nm Al₂O₃.
TiO₂ was deposited at 200°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with native oxide.
TiO₂ was deposited at 200°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Pure Si (HF treated).
TiO₂ was deposited at 200°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with 35 nm Al₂O₃.
TiO₂ was deposited at 250°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with native oxide.
TiO₂ was deposited at 250°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Pure Si (HF treated).
TiO₂ was deposited at 250°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with 35 nm Al₂O₃.
TiO₂ was deposited at 300°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with native oxide.
TiO₂ was deposited at 300°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Pure Si (HF treated).
TiO₂ was deposited at 300°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with 35 nm Al₂O₃.
TiO₂ was deposited at 350°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with native oxide.
TiO₂ was deposited at 350°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Pure Si (HF treated).
TiO₂ was deposited at 350°C and 1000 cycles using the standard “TiO2” recipe. Substarate: Si with 35 nm Al₂O₃.

Deposition on high aspect ratio structures (SEM inspection)

Titanium oxide has been deposited on Si trench structures to see the uniformity of the layer. The standard recipe “TiO2” was implemented. The trenches were inspected using SEM in cross-sectional mode. All samples were cut across the groves and along them, and all sides (across and along) were inspected.

Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 300°C and 1000 cycles. A Standard “TiO2” recipe was used. Bird-eye-view.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 300°C and 1000 cycles. A Standard “TiO2” recipe was used. Bird-eye-view.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 300°C and 1000 cycles. A Standard “TiO2” recipe was used. Bird-eye-view.

Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 100°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 100°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 100°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: along the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 150°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 150°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 150°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: along the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 200°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 200°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 200°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: along the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 250°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 250°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 250°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: along the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 300°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 300°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 300°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: along the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 350°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 350°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: across the trench.
Deposition of TiO₂ on high aspect ratio Si trench structures. The trench height is 2000 nm. Deposition conditions: 350°C and 1000 cycles. A Standard “TiO2” recipe was used. Cutting direction: along the trench.

X-ray photoelectron spectroscopy

XPS measurements of all samples has been performed using the XPS NEXSA equipment. The purpose of the investigation is to get an idea about the film stoichiometry, composition and possible contamination. Since the XPS NEXSA also offers REELS and ISS analysis these measurements were also performed.

The XPS Nexsa is equipped with the MAGCIS or Mono Atomic and Gas Cluster Ion Source that allows to sputter off material from the sample either using single argon atoms with energies up to 4 keV or by using ionized clusters of argon atoms (between 75 and 2000 atoms) with energies up to 8 keV. For this analysis, the native carbon contamination has been removed by Ar clusters at 4keV and a size of 300 atoms. The moisture level has been sputtered off by implementing 25 levels at 5 s each.

MAGCIS cleaning of Al2O3 film surface
Removal of native carbon by Ar clusters.
Removal of native carbon by Ar clusters. 2D profile.

After the surface has been cleaned, the film has been measured, so the survey, valence region, and high-resolution elements (Ti, O, and Cl) scan have been acquired.

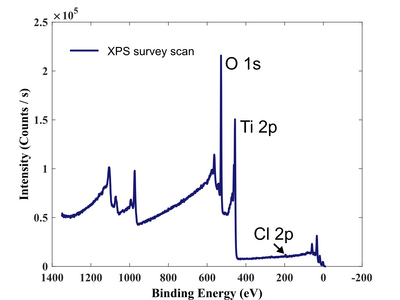

Survey scan.

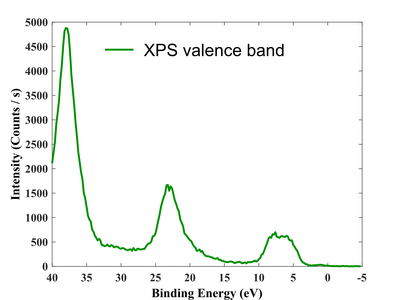

Valence region.

Ti 2p signal. High resolution scan. 100°C.
Ti 2p signal. High resolution scan. 150°C.
Ti 2p signal. High resolution scan. 200°C.
Ti 2p signal. High resolution scan. 250°C.
Ti 2p signal. High resolution scan. 300°C.
Ti 2p signal. High resolution scan. 350°C.
O 1s signal. High resolution scan. 100°C.
O 1s signal. High resolution scan. 150°C.
O 1s signal. High resolution scan. 200°C.
O 1s signal. High resolution scan. 250°C.
O 1s signal. High resolution scan. 300°C.
O 1s signal. High resolution scan. 350°C.
Cl 2p signal. High resolution scan. 100°C.
Cl 2p signal. High resolution scan. 150°C.
Cl 2p signal. High resolution scan. 200°C.
Cl 2p signal. High resolution scan. 250°C.
Cl 2p signal. High resolution scan. 300°C.
Cl 2p signal. High resolution scan. 350°C.

Stoichiometry results

Stoichiometry results for TiO₂ deposited with TiCl₄ and H₂O.
Temperature °C	100	150	200	250	300	350
Number of cycles	1000	1000	1000	1000	1000	1000
Ti (At. %)	32.36	32.42	32.50	32.65	32.60	32.85
O (At. %)	65.57	66.68	66.98	67.35	67.40	67.15
Cl (At. %)	2.05	0.9	0.52	0	0	0

Small amount of chlorine comes from unreacted TiCl₄ processed at low temperatures.

REELS and ISS

Reflected Electron Energy Loss Spectroscopy (REELS) involves the exposure of the sample to a focused beam of monoenergetic electrons at 1keV coming from the flood gun. As these electrons interact with the material some of them will undergo inelastic scattering whereby they lose some kinetic energy. In reflection electron energy loss (REELS) the electrons that are both elastically and inelastically scattered are collected using the electron energy analyzer. The low-energy electron energy loss spectrum (up to ~50eV in energy loss) contains the elastic, or zero-loss, peak as well as the plasmon peaks. This spectrum can be used to determine information about the band structure and dielectric properties of the sample.

Calculated sampling depth for a 1 keV REELS experiment is ca. 15 nm, although it is noted that this will be dependent on the material being analyzed. Information from the REEL spectrum is complementary to other surface sensitive techniques, including XPS.

Ion scattering spectroscopy (ISS) is a technique in which a beam of He⁺ ions is scattered by a surface. The kinetic energy of scattered ions is measured; peaks are observed corresponding to elastic scattering of ions from atoms at the surface of the sample. Each element at the sample surface produces a peak at a different measured kinetic energy, caused by the momentum transfer between the incident ion and atom. The scattered ion and the scattering atom are normally of different masses, but the total momentum of the atom and ion is conserved. Therefore, as the initially "stationary" atom recoils, some kinetic energy is lost from the scattered ion, and the quantity of lost energy depends on the relative masses of the atom and ion. An ion scattering spectrum typically contains one peak for each element in the sample, with their separation in energy relating to the relative atomic masses of those elements. In some cases, different isotopes of the same element can be resolved, although this usually requires a primary ion heavier than He⁺. Strong scattering signals are limited to the topmost layer of atoms, so ISS is extremely surface-sensitive. Therefore, the sample must be clean, and even a small quantity of surface contaminant can significantly influence the ion scattering spectrum. Find more information here: https://www.thermofisher.com/dk/en/home/materials-science/learning-center/surface-analysis.html

ISS

ISS spectrum. (low current, Beam energy: 1kEv)
ISS spectrum. (low current, Beam energy: 1kEv)
ISS spectrum. (low current, Beam energy: 1kEv)
ISS spectrum. (low current, Beam energy: 1kEv)
ISS spectrum. (low current, Beam energy: 1kEv)
ISS spectrum. (low current, Beam energy: 1kEv)
ISS spectrum. (low current, Beam energy: 1kEv)

REELS

REELS spectrum
$Bandgap=3.32eV$
REELS spectrum
$Bandgap=3.30eV$
REELS spectrum
$Bandgap=3.56eV$
REELS spectrum
$Bandgap=3.49eV$
REELS spectrum
$Bandgap=3.51eV$
REELS spectrum
$Bandgap=3.35eV$

X-ray Reflectivity and Diffraction

The crystal model of anatase TiO₂. The transparent red plane across the lattice represents the 101 plane.

X-ray methods have also been involved in TiO₂ characterization. The reflectivity method will allow measuring the film density and possible fluctuation of the density through the film thickness. The thickness and roughness can also be calculated. The grazing incidence diffraction can be applied to evaluate crystallinity in films prepared at different temperatures.

XRR analysis

X-ray reflectivity analysis (XRR) of samples (deposited at 150°C and 350°C) have been performed to investigate the thicknesses, roughness, and density profiles.

Three samples have been analyzed. 100 nm TiO₂ deposited at 350°C, 100 nm TiO₂ deposited at 150°C and 1000 cycles (45 nm) TiO₂ deposited at 150°C on an amorph Al₂O₃ interlayer.

The scans have been obtained using Rigaku XRD SmartLab equipment. The voltage and current settings for the Cu X-ray tube were standard 40kV and 30mA. The incident optics contained an IPS (incident parallel slit) adaptor with 5 ° Soller slit. Other slits: IS=0.03mm RS1=0.03mm and RS2=0.075mm. Step size: 0.01 and measurement time - 5s for each point. The fitting process was performed using commercial GlobalFit software assuming the model based on Si or SiO₂ substrates with native oxide/interlayer followed by the deposited TiO₂ film and moisture surfaces. The results are summarized in the tables below.

Anatase TiO₂ deposited at 350°C and 2174 cycles (approx. 100 nm) Profiles show almost invisible and heavily damped fringes. This corresponds to a high roughness, caused by the polycrystalline nature of the TiO₂ layer where grain boundaries are quite pronounced.

Amorphous TiO₂ deposited at 150°C and 2161 cycles (approx. 100 nm). Profiles show clear fringes that remain visible even at the high 2theta angle. This corresponds to a lower roughness.

Amorphous TiO₂ deposited at 150°C and 1000 cycles (approx. 100 nm) deposited on a 35 nm Al2O3. The fringe profiles become quickly erratic, but still possible to fit.

XRR results for TiO₂ layers

Anatase TiO₂ deposited at 350°C 2174 cycles
Layer name	Thickness (nm)	Density (g/cm³)	Rougness (nm)	Depth distribution	Bottom density (g/cm³)	Delta	Beta
Moisture	0.45	1.04	0.19	No distribution		3.3876e-6	7.8666e-8
TiO₂	104.14	3.99	6.88	Linear	2.27	1.3010e-5	3.0212e-7
SiO₂ native oxide	3.84	2.29	0.05	No distribution		7.4756e-6	1.7359e-7
Si wafer	$\infty$	2.33	0.08	No distribution		7.5860e-6	1.7616e-7

Amorphous TiO₂ deposited at 150°C 2161 cycles
Layer name	Thickness (nm)	Density (g/cm³)	Rougness (nm)	Depth distribution	Bottom density (g/cm³)	Delta	Beta
Moisture	0.66	0.12	0.18	No distribution		4.2943e-7	9.9721e-9
TiO₂	91.22	3.81	0.36	Linear	3.00	1.2422e-5	2.8846e-7
SiO₂ native oxide	0.66	2.11	0.46	No distribution		6.8850e-6	1.5988e-7
Si wafer	$\infty$	2.33	0.21	No distribution		7.5860e-6	1.7616e-7

Amorphous TiO₂ deposited at 150°C 1000 cycles on top of Al₂O₃ (350°C 350 cycles)
Layer name	Thickness (nm)	Density (g/cm³)	Rougness (nm)	Depth distribution	Bottom density (g/cm³)	Delta	Beta
Moisture	0.61	0.91	0.18	No distribution		2.9195e-6	6.7794e-8
TiO₂	44.75	3.76	0.39	Linear	3.38	1.2250e-5	2.8447e-7
Al₂O₃	34.69	2.82	0.28	No distribution		9.1898e-6	2.1340e-7
SiO₂ native oxide	1.43	2.30	0.37	No distribution		7.4884e-6	1.7389e-7
Si wafer	$\infty$	2.33	0.04	No distribution		7.5860e-6	1.7616e-7

Fitting parameters
Sample	Fitting parameters
Sample	Intensity	Background	Fitting area ( $2\Theta$ )	R	$\mathrm {X} ^{2}$
Anatase TiO₂ deposited at 350°C 2174 cycles	1.03302	1.25415E-5	0.4304 - 2.0000	0.00954	0.00116
Amorphous TiO₂ deposited at 150°C 2161 cycles	1.15715	4.34885E-8	0.4304 - 6.0000	0.00793	0.00127
Amorphous TiO₂ deposited at 150°C 1000 cycles on top of Al₂O₃ (350°C 350 cycles)	1.42211	5.50839E-8	0.4672 - 6.0000	0.01334	0.00392

Grazing incidence X-ray diffraction (GiXRD)

The grazing incidence X-ray Diffraction (GiXRD) technique was applied to measure 100 nm TiO₂ film deposited at 150°C and 350°C. The scans have been obtained using Rigaku XRD SmartLab equipment. The voltage and current settings for the Cu X-ray tube were standard 40kV and 30mA. The incident optics contained an incident parallel slit adaptor with incident 5 ° Soller slit. Receiving optics also included 5 ° Soller slit and parallel slit analyzer of 0.5 °. Other slits: IS=0.5mm RS1=open and RS2=open. Step size: 0.05 and measurement speed - 1° /min for each point. The measurement range was from 20 ° to 110 ° of 2θ. The incident angle was fixed at 2°.

$GiXRD spectra of amorph (150°C) and anatase (350°C) TiO2 films. The diffraction pattern of the anatase form is in agreement with the COD database.$

GiXRD spectra of amorph (150°C) and anatase (350°C) TiO₂ films. The diffraction pattern of the anatase form is in agreement with the COD database.

TiO2 ALD deposition using TiCl4 and H2O

TiO2 recipes
